Wire Static Bending Testing Machine For Detecting The Dynamic Bending Test Of Rubber Insulated And Shea

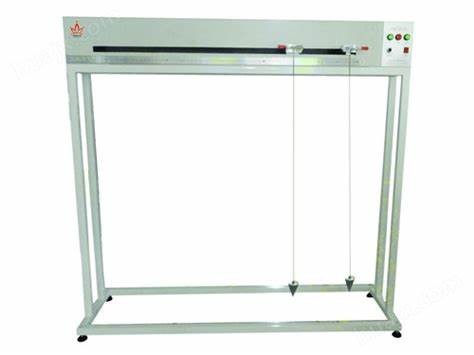

DX8308 Wire Static Bending Testing Machine

Applicable scope:

Mainly suitable for detecting the dynamic bending test of rubber insulated and sheathed soft cables under load, and detecting the following wire and cable faults during the test and stopping the machine.

Compliant with standards:

Complies with the requirements of static deflection test in GB/T5023.2-2008/IEC60227-2:2003 and GB/T5013.2-2008/IEC60245-2:1998; Meet the requirements of static deflection test in GB/T5013.5-2008 and GB/T5013.6-2008; Complies with the requirements of 4.4.1 deflection test and 4.4.2 static deflection test in GB/T5023.6-2008.

IEC60245-1 Static Flexibility Tester For Checking Mechanical Strength Of Completed Flexible Cables.

Parameter indicators:

1. Sample diameter Φ6-φ32mm (standard with two sets of fixtures)

2. Sample length 3000mm, height from ground≥1500mm

3. The distance between two clamps (the distance between the two clamps meets the requirements of Table 4, Table 5, and GB/T5023.2-2008 in GB/T5013.21-2008)

Bending 1:760-1700mm

Bending 2: 200-1700mm

4. Speed: 4m/s2 1500 times/H

5. Counting range: 0-999999

6. Motor power: 0.37kW

7. External dimensions: 2350 * 850 * 1700mm

8. Test current: 0.1A

9. Test voltage: 12V

10. Weight: 300Kg

11. Cycle number≥3000000 times

12. Alarm and shutdown when the insulation core of the cable is broken.

Principle:

Take an appropriate length of wire, fix it on the equipment, and move it back and forth. When the wire core breaks, the machine will automatically alarm and stop.
