ASTM E648-19 Fire Testing Equipment Floor Covering Critical Radiant Flux Test

Scope of application:

- Suitable for testing with a small flame igniting a floor covering material that is placed horizontally and exposed to an inclined thermal radiation field.

- Suitable for all kinds of flooring materials. Such as: textile carpets, cork, wood plastic flooring and floor spraying materials. The device may reflect the burning properties of the flooring material including the substrate used, backing material, underlay material, or flooring material

- Measure and describe the properties of floorings in response to heat and flame under controlled laboratory conditions.

Standard:

ISO 9239-1:2002 :Reaction to fire tests for floorings- Part1: determination of the burning behaviour using a radiant heat source;

ASTM E648-19ae1: critical radiant flux of floor-covering systems using a radiant heat energy source.

Technical parameters:

1. This machine structure consists of a combustion box and a control box.

2. Heat flux meter accuracy: ±0.2Kw/m2;

3. Heat flux meter accuracy: <±3%;

4. Thermal radiation high temperature measurement range: 400-600 °C, accuracy is ± 0.5 °C;

5. Black body temperature error: ±5°CC;

6. Porous refractory radiant panel size: 300mm × 450mm, able to withstand about 900 °C high temperature;

7. Thermocouples: κ-type stainless steel armored thermocouples with a diameter of 3.2 mm;

8. Heat flux distribution requirements: at 200mm (9.1 ± 0.4) KW/m2; at 400mm: (5.0 ± 0.4) KW/m2;

9. At 600mm: (2.4 ± 0.2) KW/m;

10. Burning torch: 35mm 0.7mm hole in outer diameter g10mm inner diameter c6mm torch tube;

11. Ignition system: high voltage electronic ignition;

12. Burning box size: L1420*W1200*H2300(mm)

ASTM E648-19 Fire Testing Equipment

Critical Radiant Fire Testing Equipment

Floor Covering Critical Radiant Flux Test

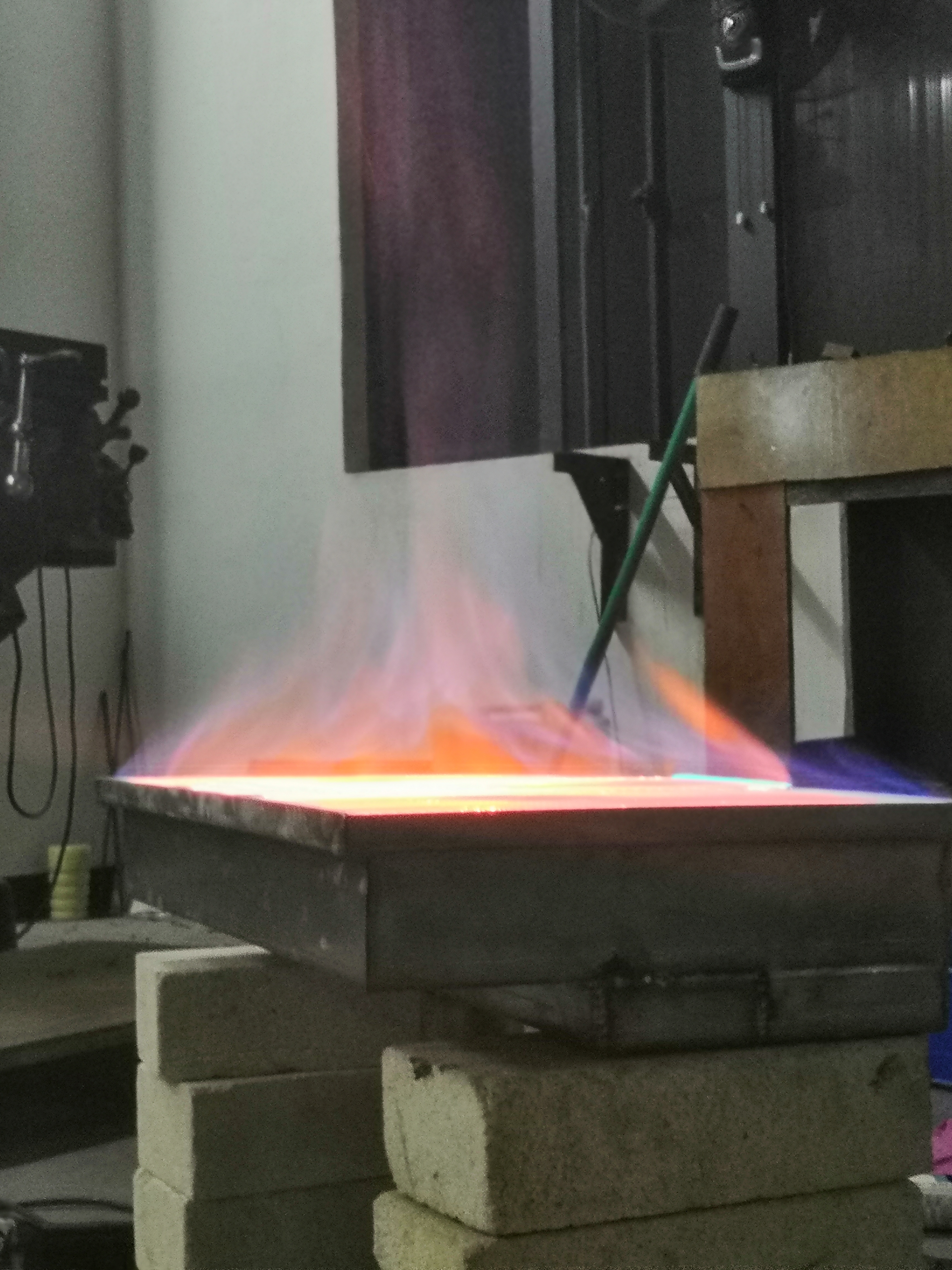

ASTM E648-19 Fire Testing Equipment Floor Covering Critical Radiant Flux Test Images
