IEC-529 Auto Parts Dust Test Chamber Environmental Tester

IEC529​ Auto parts Dust Test Chamber , Shell Sealing Performance Testing Machine for Automotive Parts

Scope of application:

The dust test box is suitable for dust-proof and anti dust test of various automobile parts and electronic appliances. Automobile parts include lamp, door lock, electric, lamp, instrument, dust cover, steering system, etc.; electronic appliances include mobile phone, computer and household appliances, etc.

Model and specification:

Model: DX8489
1. Standard wire diameter of test chamber screen: 75 ~ 100um
2. Dust blowing period (intermittent control) is adjustable


Equipment use environment:

1. Temperature: 15 ℃ ~ 35 ℃
2. Relative humidity: ∠ 85% RH
3. There is no strong vibration and electromagnetic field around
4. There is no high concentration dust and corrosive substance around
5. No direct sunlight or other heat sources
6. There is no strong air flow around. When the ambient air needs forced flow, the air flow should not directly blow to the box
7. The test chamber should be placed stably and kept level
8. The installation site is well ventilated
9. Good grounding

Structure, material and characteristics:

1. The shell of the test chamber is made of 3042b stainless steel
2. The shell of the test chamber is made of high quality stainless steel plate
3. The dust blowing motor is made of stainless steel shell with strong sealing, low noise and high wind speed

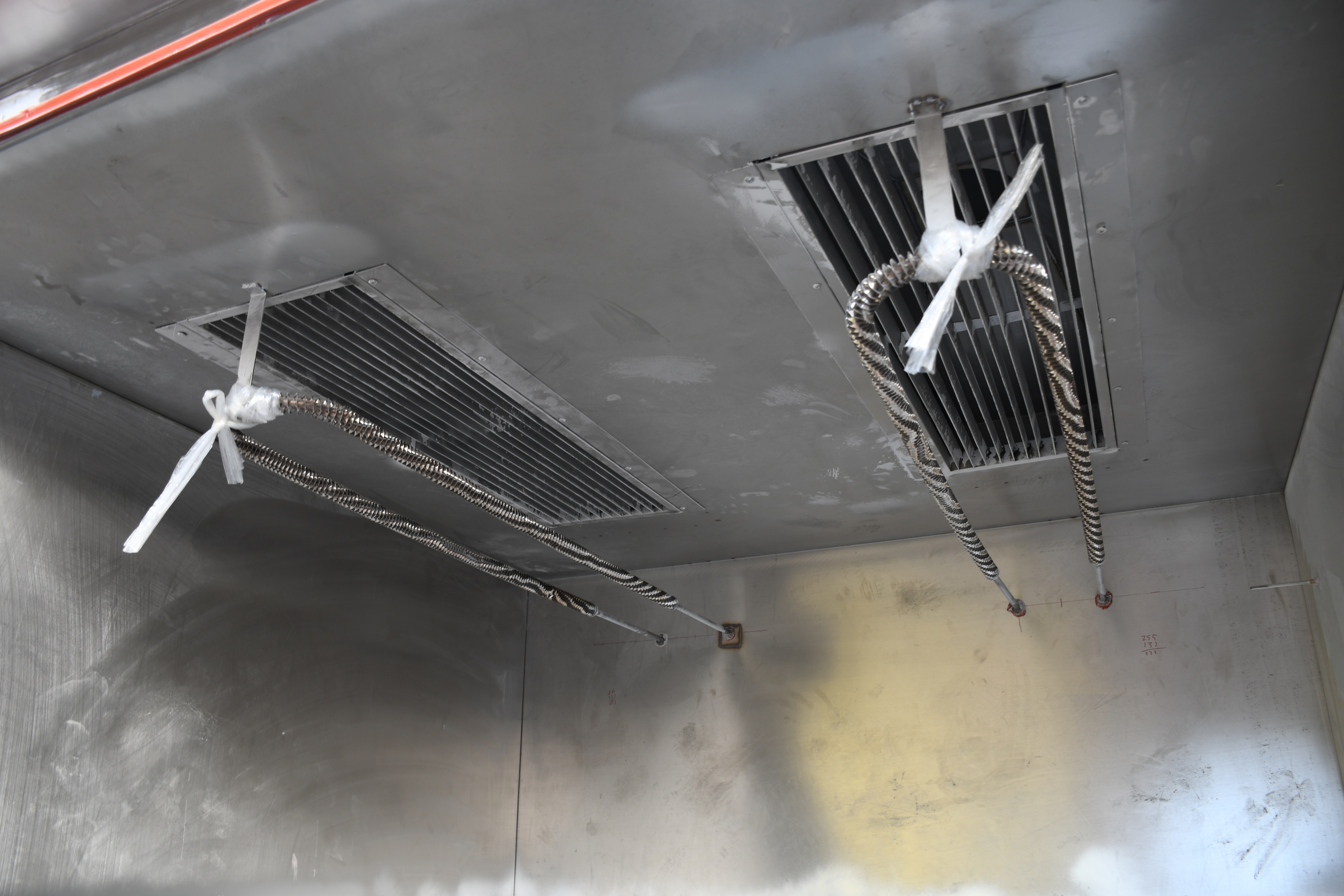

4. The inner shell of the box is funnel-shaped, the vibration period is adjustable, and the dust is free to fly and fall and gather beside the blowing hole

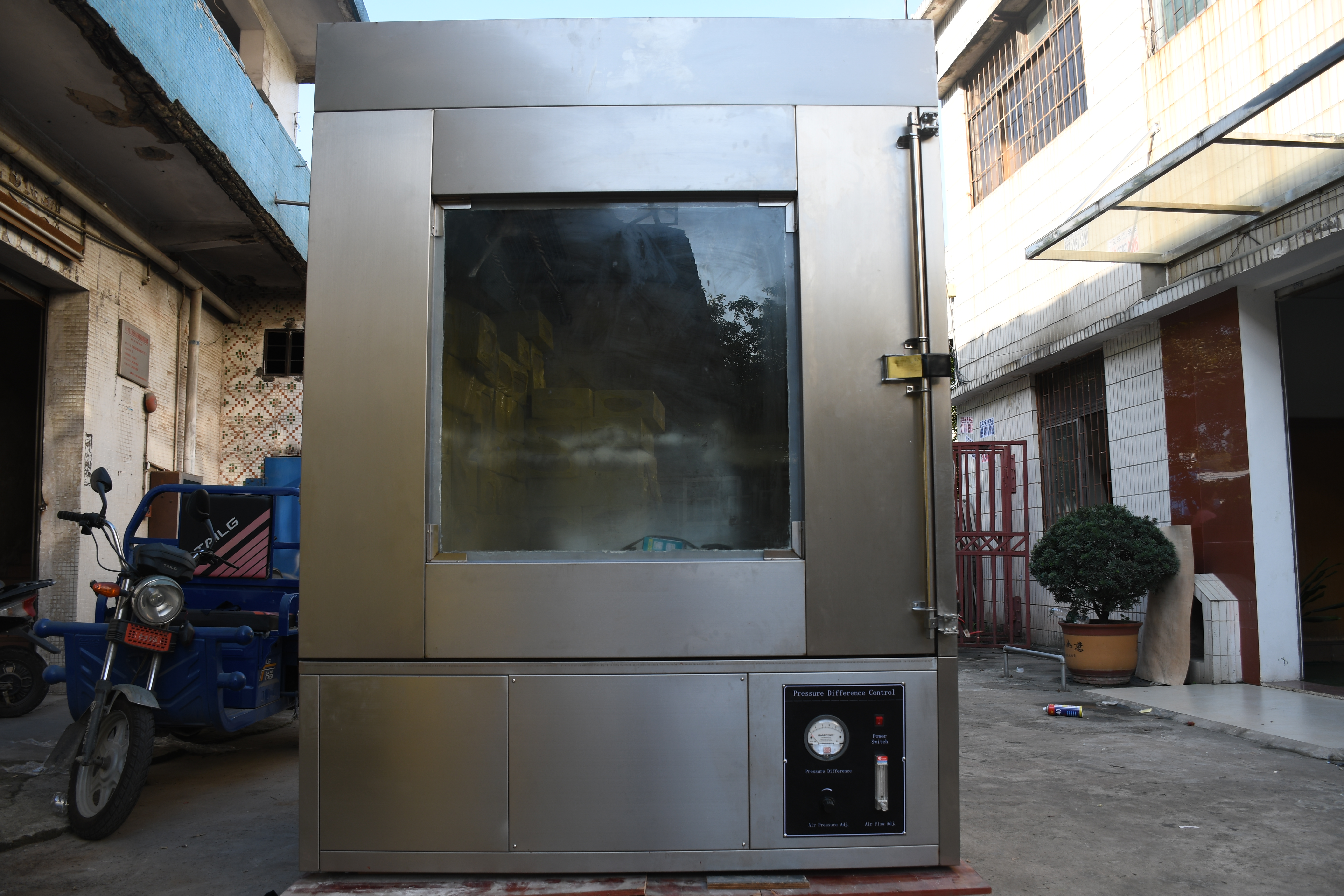

5. There is an observation window on the box door, which can observe the status of the sample in the box when the dust blowing stops

Auto Parts Dust Test Chamber

IEC-529 Dust Test Chamber

IEC-529 Environmental Test Chamber

IEC-529 Auto Parts Dust Test Chamber Environmental Tester Images
